1. Production introduction：

The Wood Wire Brush Machine is a new generation of products designed for archaic floor, furniture, table-board, handicraft and the plane surface rivet. Processed by this machine, the plane surface is skid-free, stereoscopic and beautiful.

2. Product parameter:

Work piece	Thickness	90mm
	Length	More than 400mm
	Width	600mm
Wire brushes	Total brush diameter(length)	205mm(600mm)
	1st Steel brush	0.5mm
	frequency control, right and left oscillating
	2nd steel brush	0.3mm
	frequency control, right and left oscillating
	3th nylon brush	Grid 240
	frequency control, right and left oscillating
	Feed Speed	frequency control
Motor	1st Steel brush	7.5kw
	2nd steel brush	5.5kw
	3rd Steel brush	5.5kw
	Convey feed motor	2.2kw frequency control
	Lifting motor	0.37kw
Total power

3. Product feature and application :

Application :

The wood wire brush machine is mainly for getting relief drawing result like antique floor, table, handcraft, etc. And it's a new generation products. Processed by this machine, the flat surface is skid-free, stereoscopic and beautiful. Conveyor belt, drawing rollers and polishing rollers all use independent controlled imported motors and the feeding use frequency conversion, which make the surface effect better and more precision controlled. Drawing rollers and polishing rollers can be easily removed or remounted with precise positioning. There is digital meter for height and easy operation. Disc brushes can right and left oscillating for some panel work .

Feature:

1.Wood wire brush machine adopts imported polishing wheel and steel wire, so the working effect more better.

2.The texture level is obvious for better stereoscopic feeling, and polishing effect is more better.

3.Matched with imported disc brush and swing device, the machine has high precision electric lifting.

Wood wire brush machine adopts double digital readout to show the thickness,more easy operation .

4.It adopts thickening steel plate working table for high precision.

5.Steel roller and wire roller can control independently, and can adjust the rotation direction of roller, which makes it more precise for the brush thickness.

6.The wood wire brush machine steel roller adopts the quick change type, which can save time and make it easy for repairing.

7.It adopts independent dust collecting system for more better dust removal effect.

8.Our wood wire brush machine is energy type, and can save 35% energy per year for customer.

4. Product details :

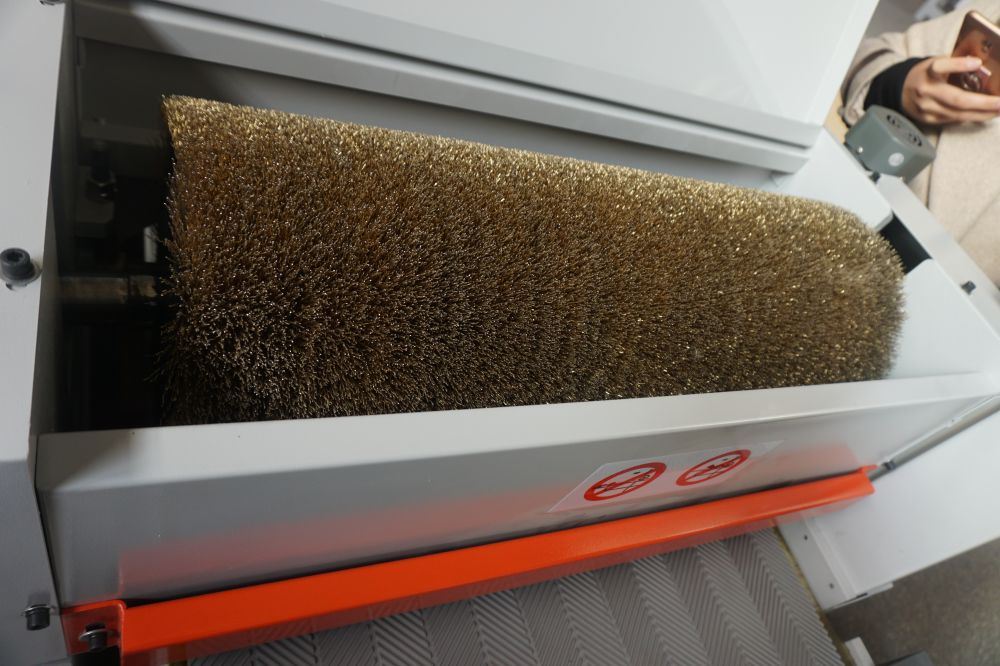

1.Wood wire brush machine Steel wire brush roller (diameter can be 0.1mm 0.3mm 0.5mm or other size you want)

2.Nylon roller (Dupont roller,can be

40grid. 60grid. 80grid. 150grid. 180grid. 240grid. 320grid as your work need )

image003(1)

3.Sanding paper roller

4.CE Standard high quality level motor for wood wire brush machine

5.Siemens frequency inverter for each roller

6.Simple control panel provides easy operation and clear introduction for each roller and function.

5. Product qualification:

Laser cutting process

Machine testing :

Our service:

machine guarantees 12months (the host machine warranty for one year, the wearing parts warranty three months )

24hours technical service by video or calling or email

Engineer is available to serve overseas,also welcome to our factory for learning machines

Regularly follow-up by email or cellphone

Expanding your production or upgrade machines in future ,professional solution will be provided.
